Effects of a Long Cable

Previous Up Next

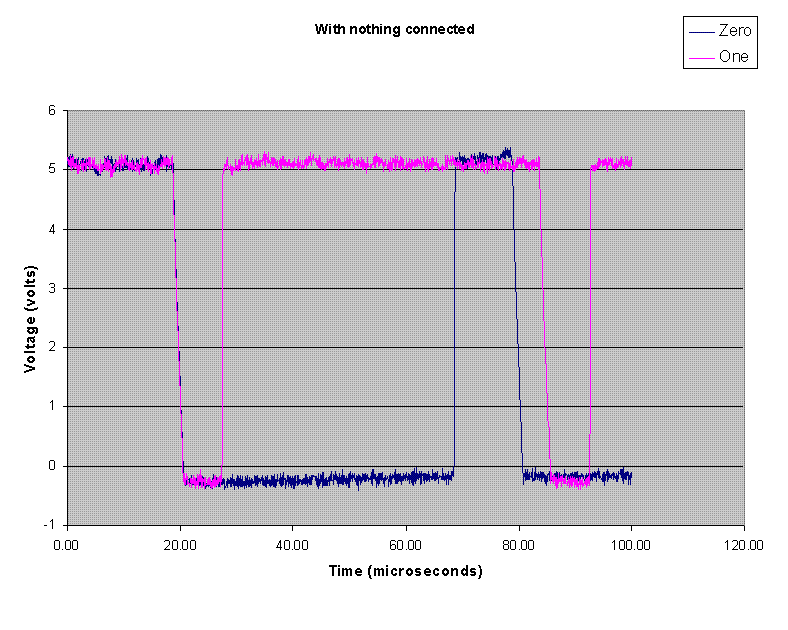

When nothing is connected to the 1-wire master, the pulses are very good.

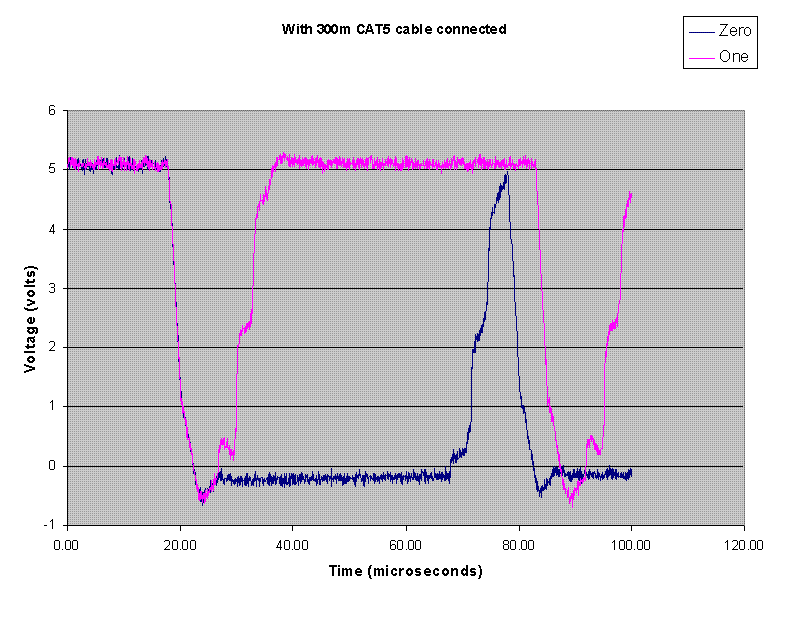

Connecting a 300-meter cable slows the rise and fall time of the pulses, and causes some overshoot and ringing. If these problems are severe enough, they could cause the signal to be misread.
