Thermometer Failures

Previous Up Next

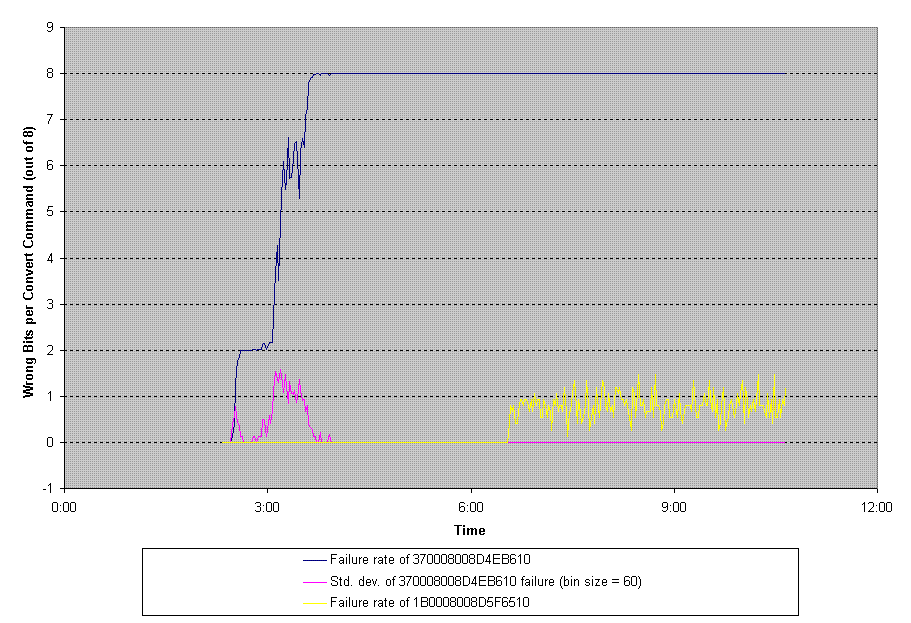

One of our most serious concerns came from two thermometer failures during the summer, one of which (370008008D4EB610) failed in the middle of the night while being read:

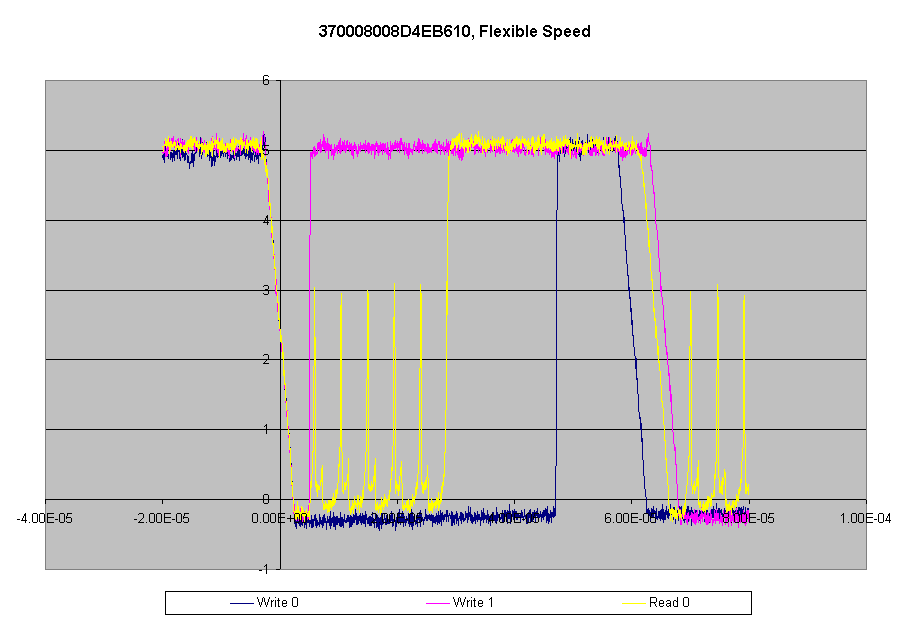

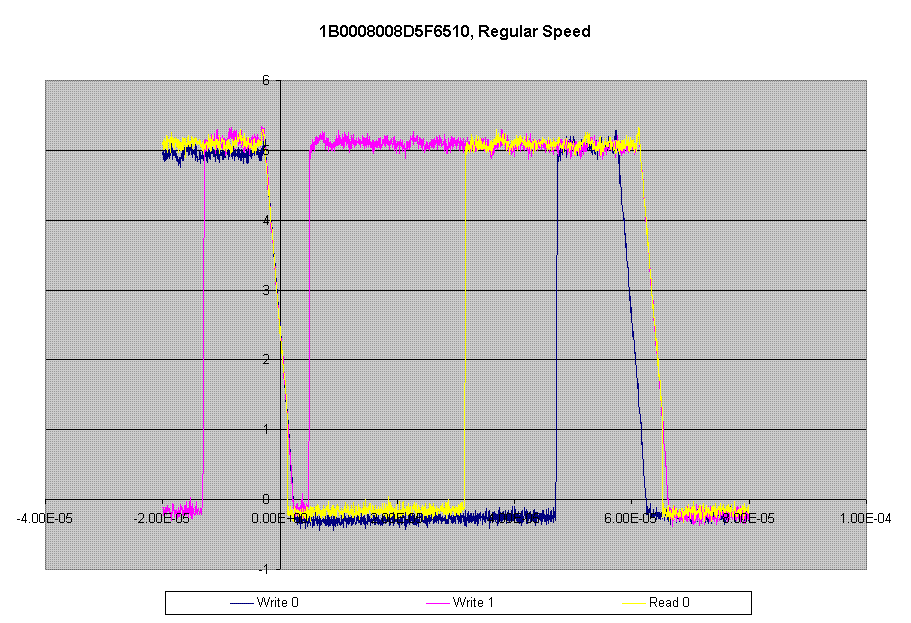

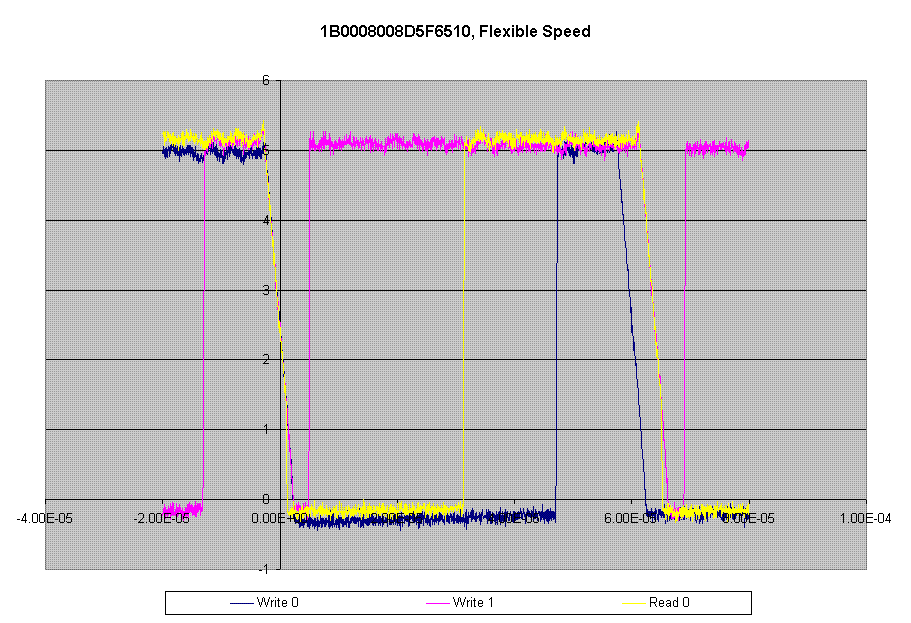

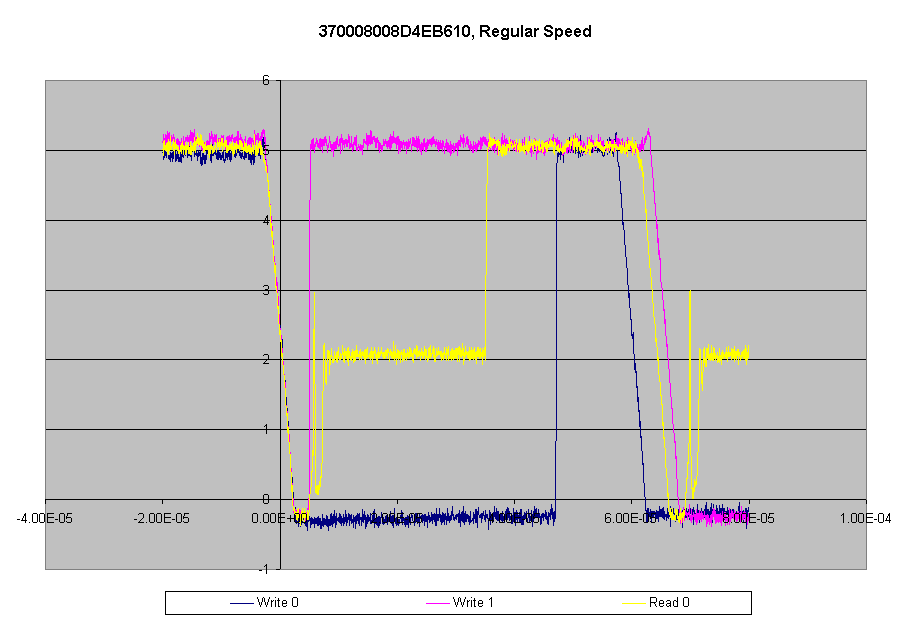

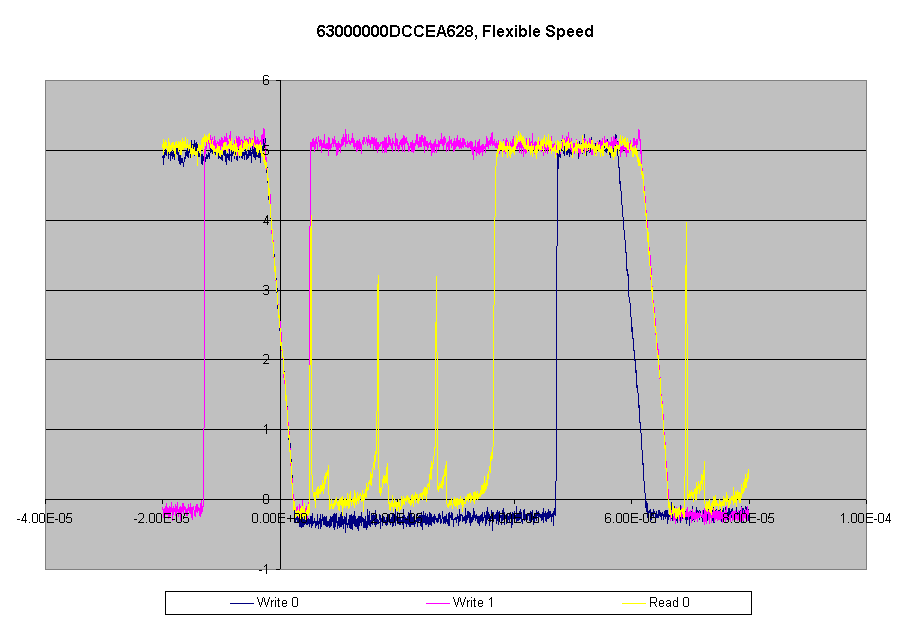

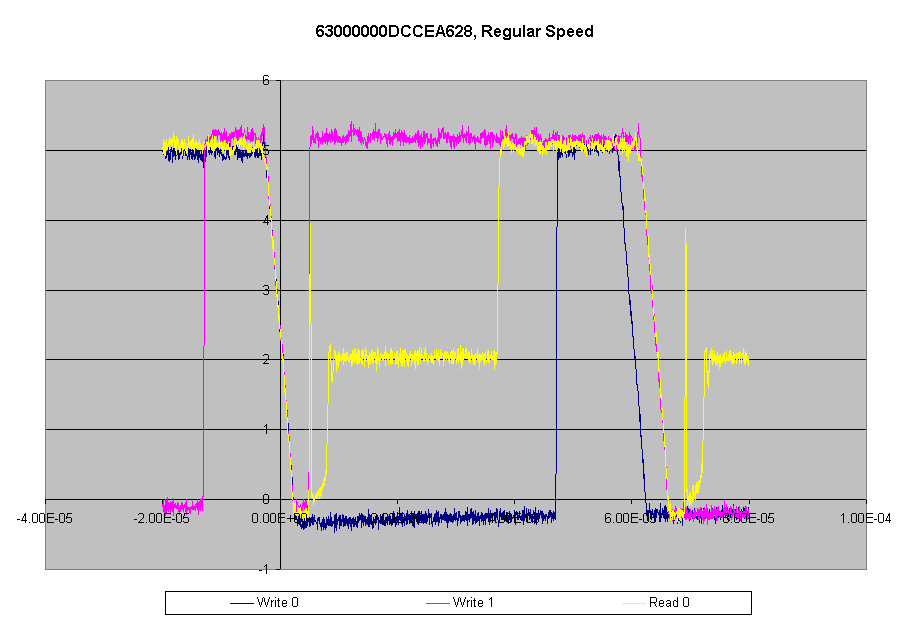

Shown below are the waveforms from:

The Dallas 1-wire thermometers were being read using a DS9490R adapter. The thermometer is using external power from the adapter. For this test, devices were repeatedly sent:

The flexible speed setting was chosen to match the timing of regular speed operation as well as possible; the settings chosen were:
