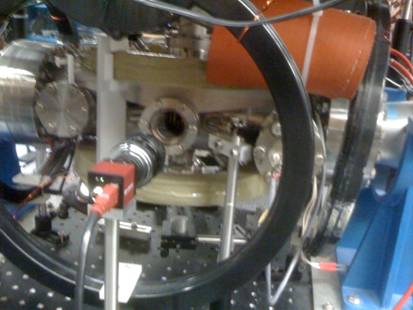

My digital camera looking into viewing pane to vacuum chamber. MOT is in there.

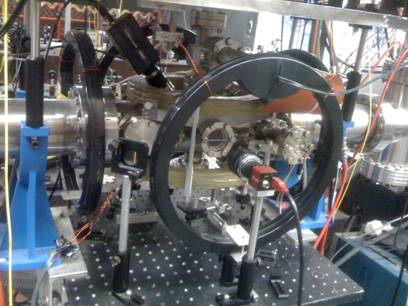

Vacuum chambers with lasers going in and Anti-Helmholtz Coils provide zero magnetic field.

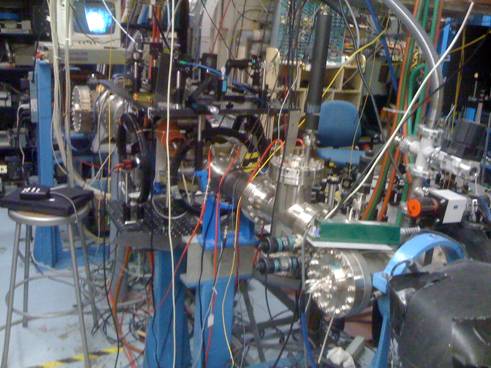

Setup for Recoil-ion Momentum Spectroscopy that I donít use. The TVs are connected to the analog cameras that face other viewing panes.

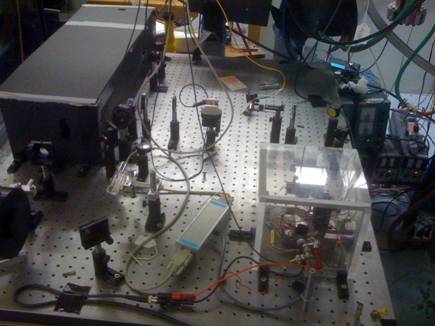

Repump laser table (Homemade laser in the plastic cage)

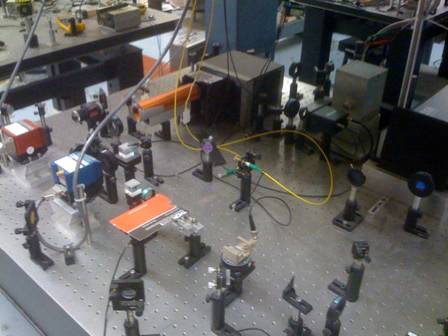

Trap laser table (Laser is the blue box)

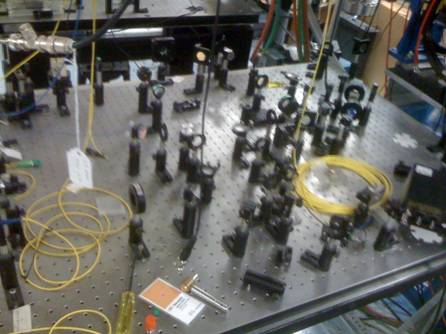

Optics table where the beams are joined before being split into the three counter-propagating beams.

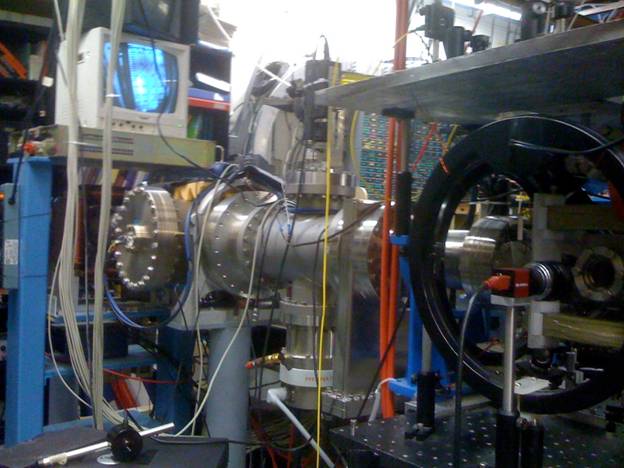

Entire fifteen-foot long ion beam line. The Rb ions start closest to you and travel to the MOT.

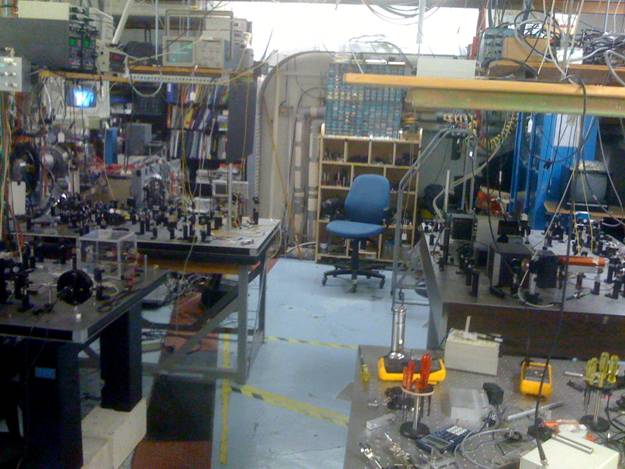

The lab as a whole
